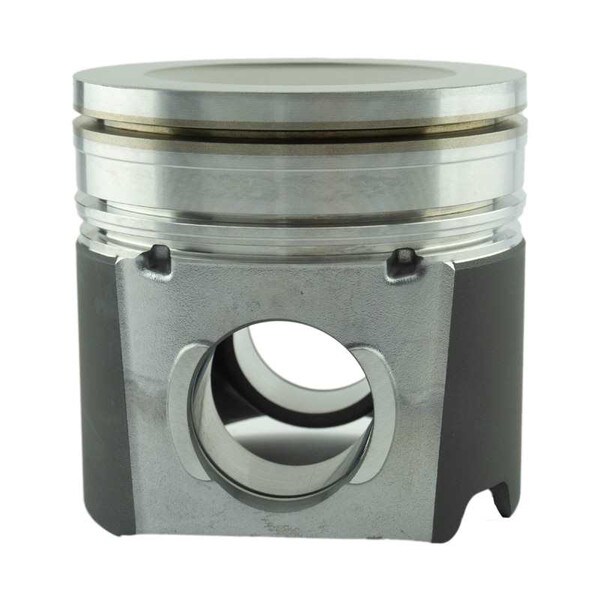

Dodge Stock Pistons For 2007.5-2018 6.7L Cummins Industrial Injection
Details
2007.5-2016 6.7L Cummins Pistons Industrial Injection is the leading distributor, supplier and remanufacturer of diesel fuel systems, turbochargers, and engines.
Your Top Choice for the top diesel products for On/Off highway, industrial, marine, automotive, and agricultrual applications.
Our experience in fuel injection, turbocharger, and engine components is unmatched. Industrial Injection will always deliver the best products for your light, medium, and heavy duty diesel.
Stock Piston Features:
- Drop In Replacement

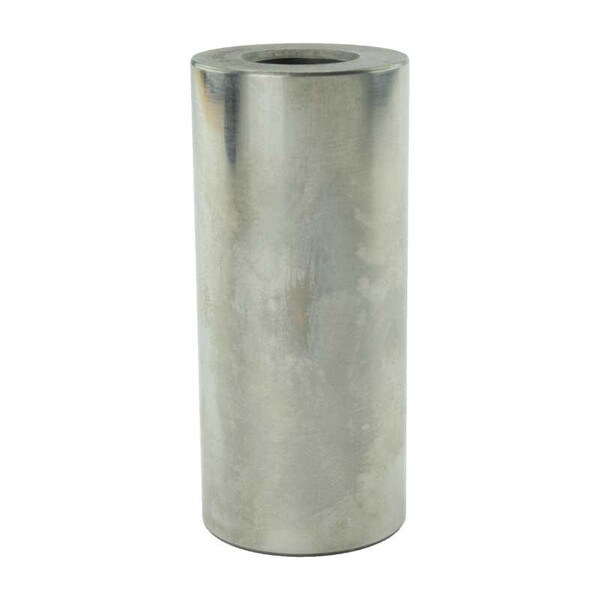

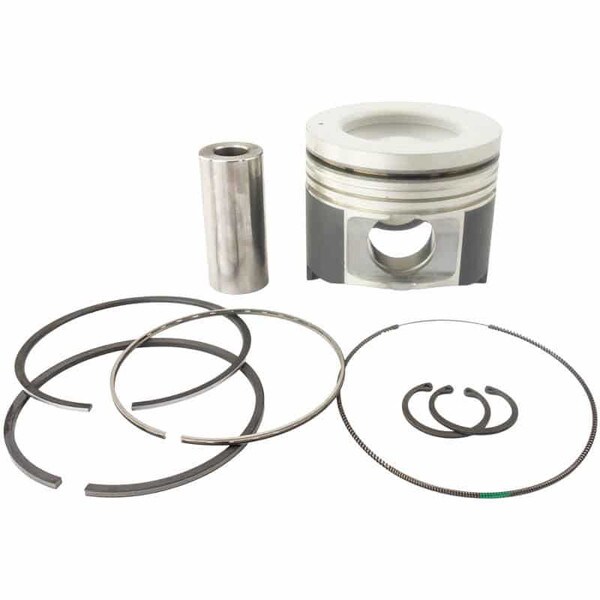

- Complete W/ Rings, Wrist Pins And Clips
- Standard Size
Fly Cut (valve relief): .100
Fly cutting is a machining Process we use to add Piston to valve Clearance, when using High lift camshaft.
Chamfering:
Our performance and race Cummins pistons are Chamfered (The top is tapered to help avoid swelling and Scuffing the Cylinder Wall.)
Skirt and Top Coating:
PDM's Ceramic Piston Skirt Coating, is designed to be used, on any rigid or semi rigid surface experiencing sliding, rotating or oscillating friction. This coating will carry loads in excess of 350,000 PSI as well as lubricate at temperatures in excess of 1600f.
This coating combines the durability of a ceramic resin with the lubricity of the ceramic lubricant. It is used in applications where high temperatures, high loads and high speeds are experienced.
When higher temperatures, than most other types of coatings can provide protection at, are experienced, this coating is fully capable of carrying the load. Gray in color it acquires a glass like finish in use. Cured film thickness of .001 or less requires no change is piston clearance.

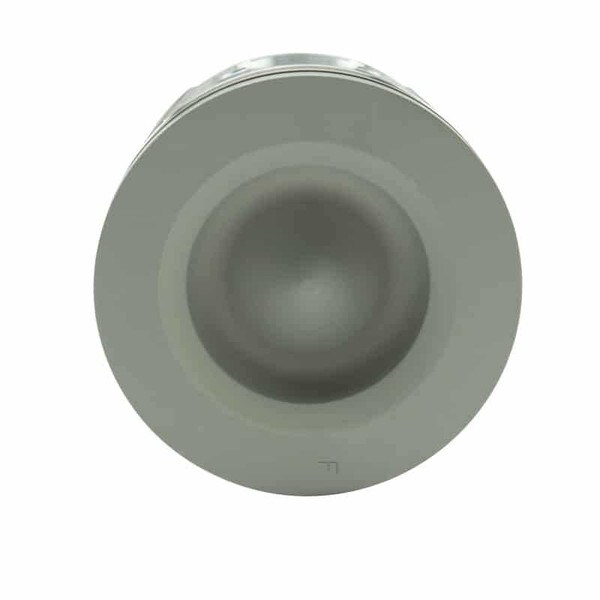

PDM's Thermal Barrier Coating for piston tops is designed for Performance engines running; Nitrous oxide, supercharged or Turbocharged. It creates a hard surface specifically designed for engines running High volumes of fuel and/or high compression ratios.
The thermal barrier coating. Reduces part temperature. Keeps heat in combustion chamber longer through the power stroke. Increase torque, H.P. and improved combustion chamber efficiency.
Sold as a set of 6 pistons
Fitments
- 2007 Dodge Ram 2500 6.7L DIESEL
- 2007 Dodge Ram 3500 6.7L DIESEL
- 2008 Dodge Ram 2500 6.7L DIESEL
- 2008 Dodge Ram 3500 6.7L DIESEL
- 2009 Dodge Ram 2500 6.7L DIESEL
- 2009 Dodge Ram 3500 6.7L DIESEL
- 2010 Dodge Ram 2500 6.7L DIESEL
- 2010 Dodge Ram 3500 6.7L DIESEL
- 2011 Ram 2500 6.7L DIESEL
- 2011 Ram 3500 6.7L DIESEL
- 2012 Ram 2500 6.7L DIESEL
- 2012 Ram 3500 6.7L DIESEL
- 2013 Ram 2500 6.7L DIESEL
- 2013 Ram 3500 6.7L DIESEL
- 2014 Ram 2500 6.7L DIESEL
- 2014 Ram 3500 6.7L DIESEL
- 2015 Ram 2500 6.7L DIESEL
- 2015 Ram 3500 6.7L DIESEL
- 2016 Ram 2500 6.7L DIESEL
- 2016 Ram 3500 6.7L DIESEL
