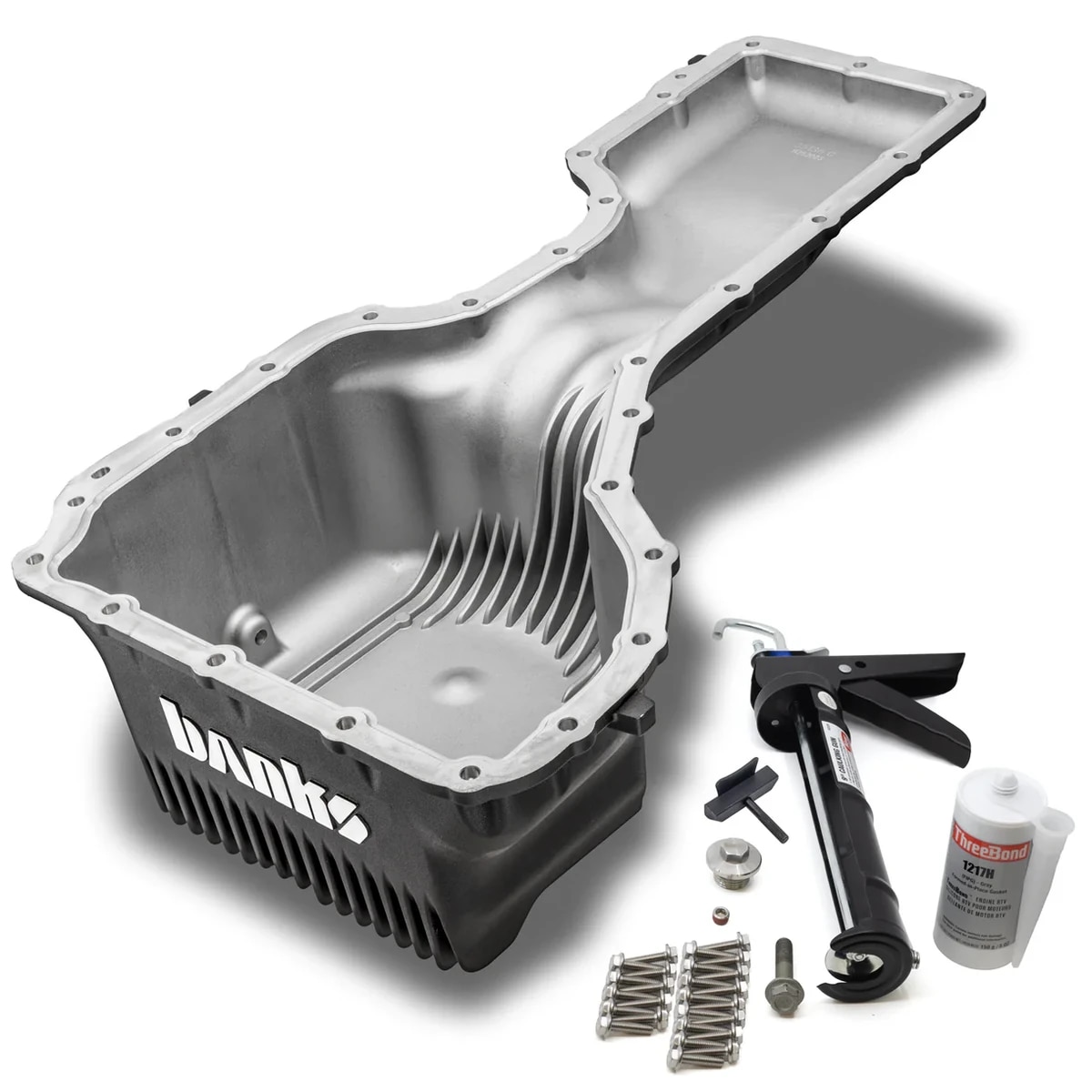

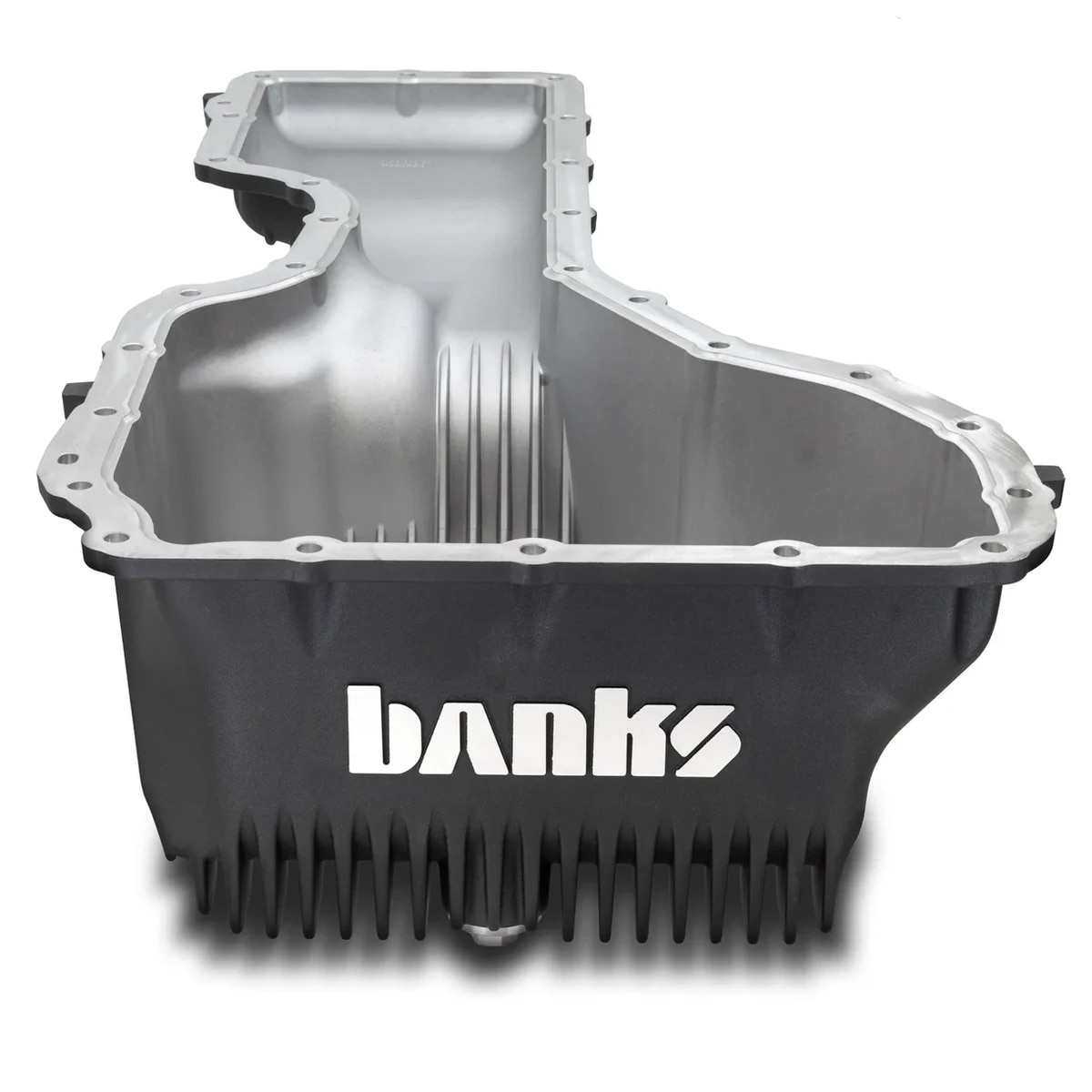

Banks Power CoolRunner Oil Pan Black Powder Coat - 2017-2019 Chevy/GMC 2500/3500 6.6L Diesel L5P - 35135-B

Banks CoolRunner Oil Pan utilizes technology from our military engine program to extend oil life. The system rejects more heat and reduces aeration better than stock and all competitors. Two additional quarts of oil and Banks FlowThru Fins aid in cooling. Unlike stock, the CoolRunner allows all fluid to drain during oil changes.

Fitment Note

Will work with AEV skid plates.

Key Features

• Engineered for the best heat rejection, improved oil flow and full oil drainage
• Adds 2 additional quarts of oil capacity
• FlowThru Fins ^TM efficiently transfer heat through the cover
• 86.1% more cooling surface area than stock

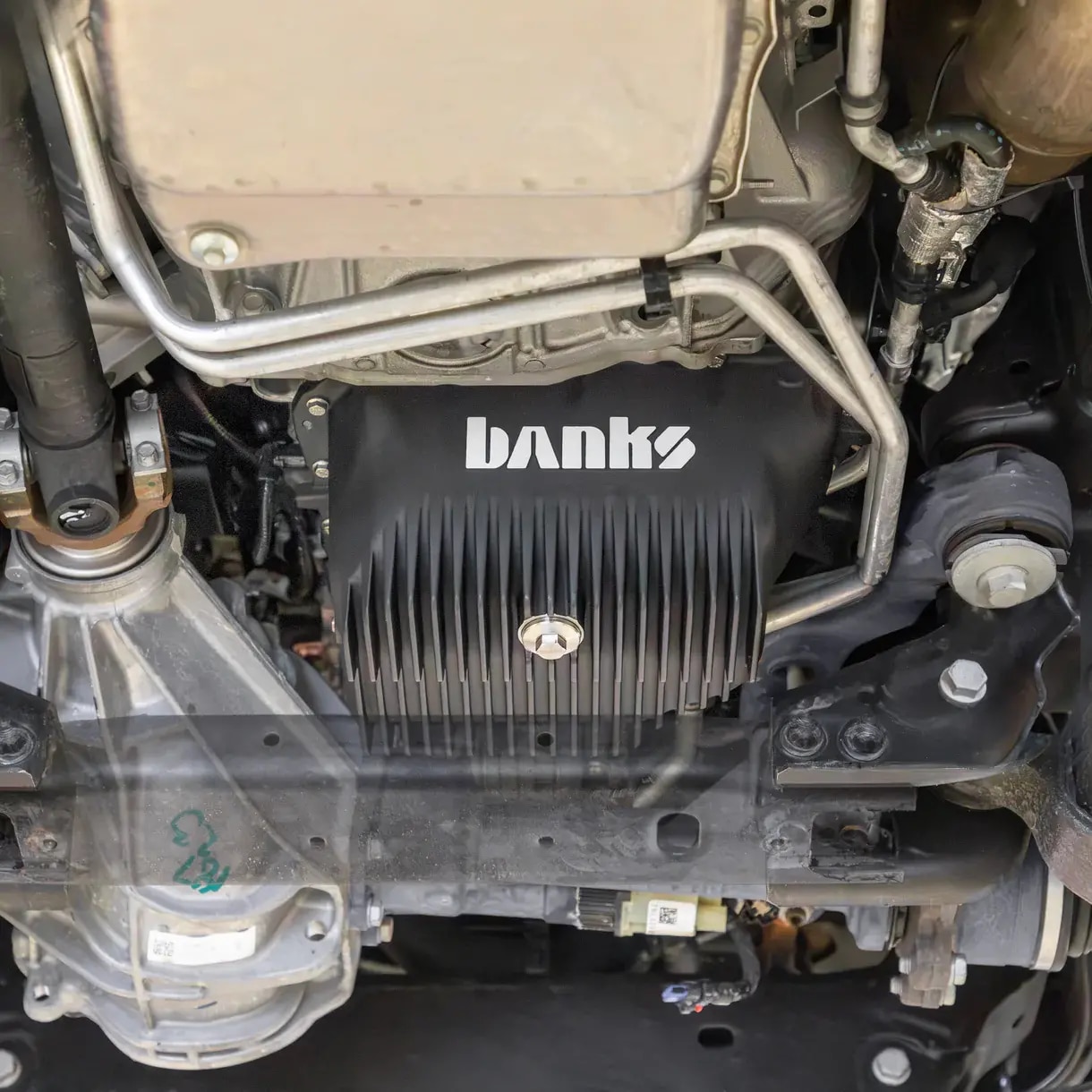

• Does not hang lower than factory front cross member
• Unlike stock, allows full engine oil drainage

Why It's Better

Engineered to Cool Motor Oil

The Banks CoolRunner Oil Pan for the 2017-2019 Duramax out-performs and out-cools the competition by leveraging decades of racing and military engine development.

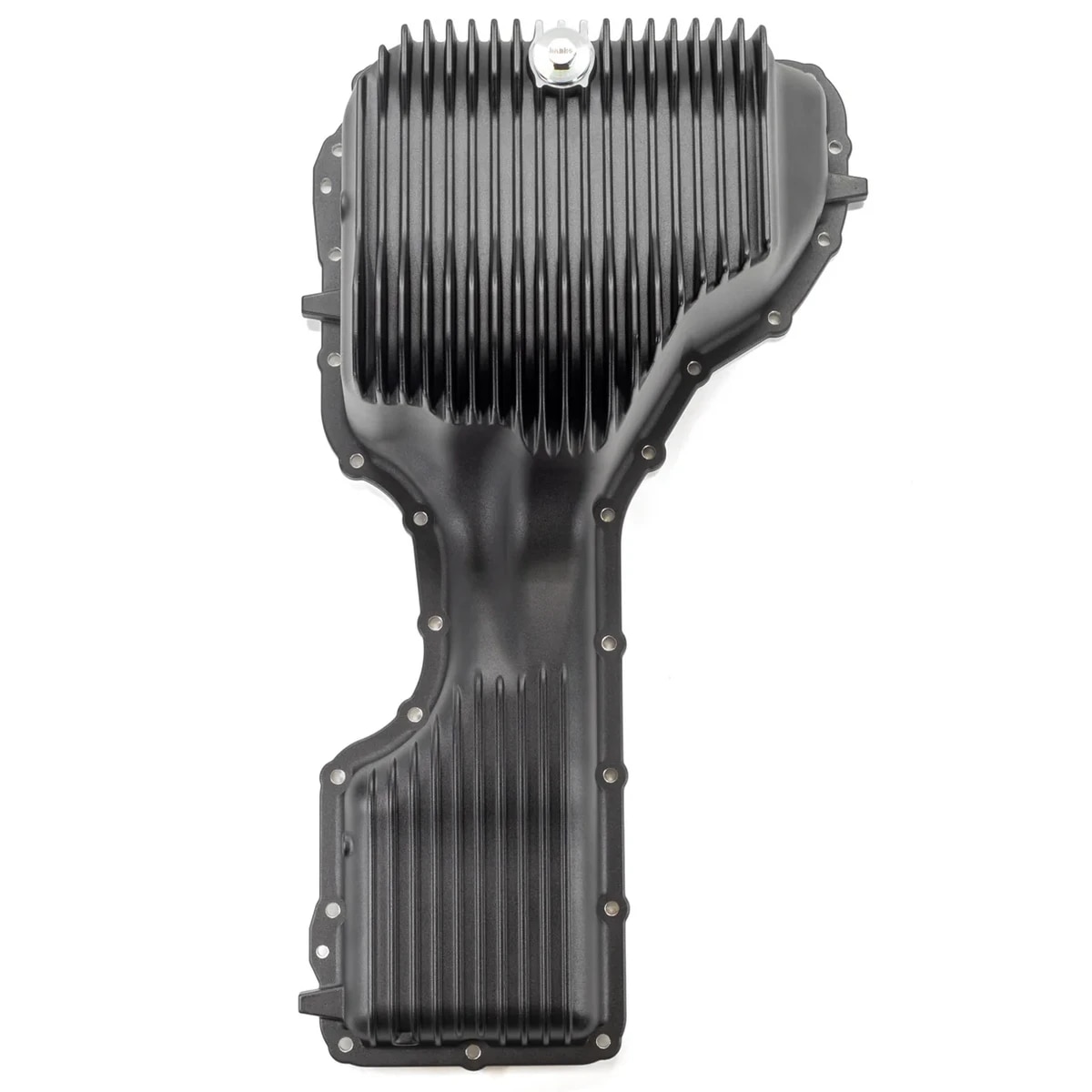

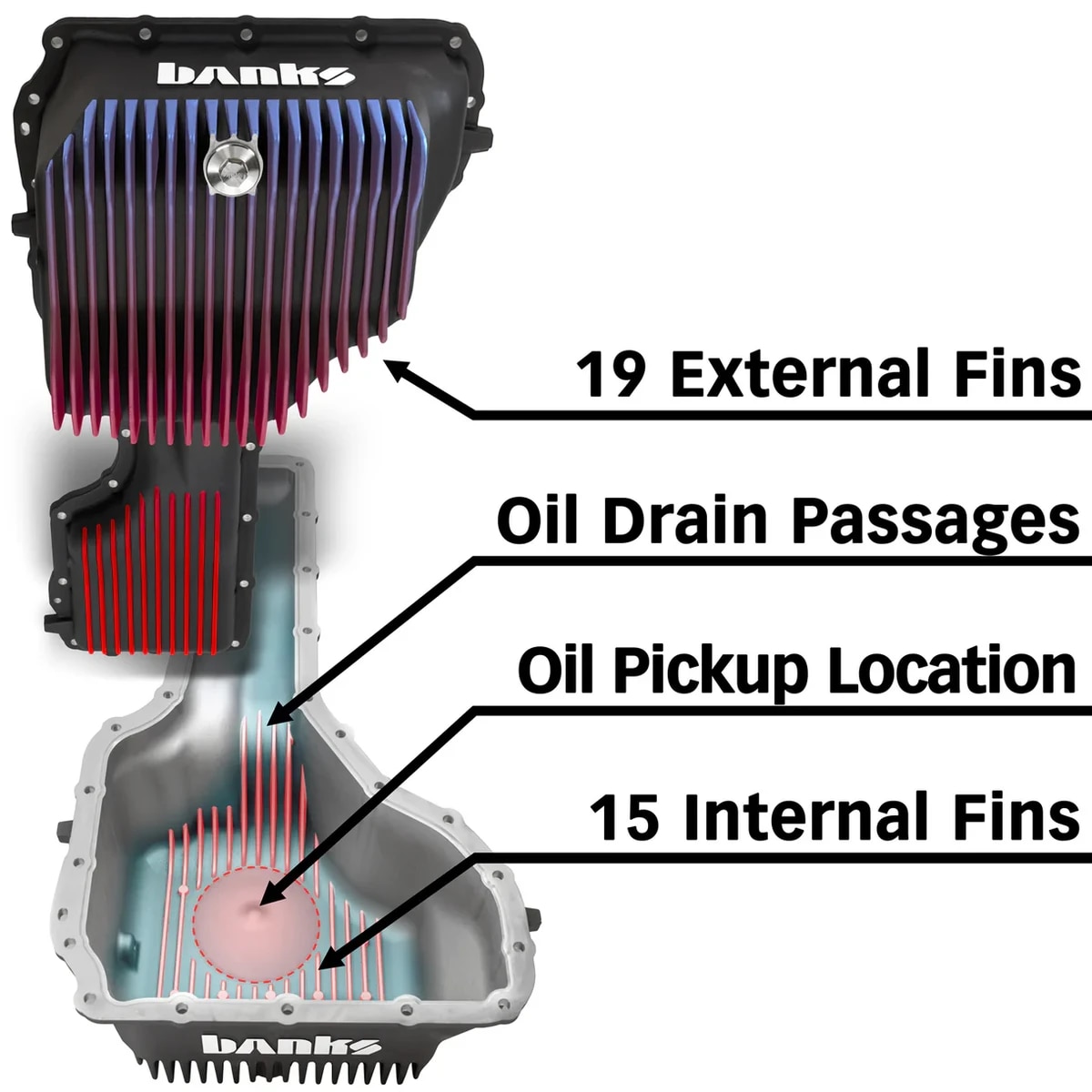

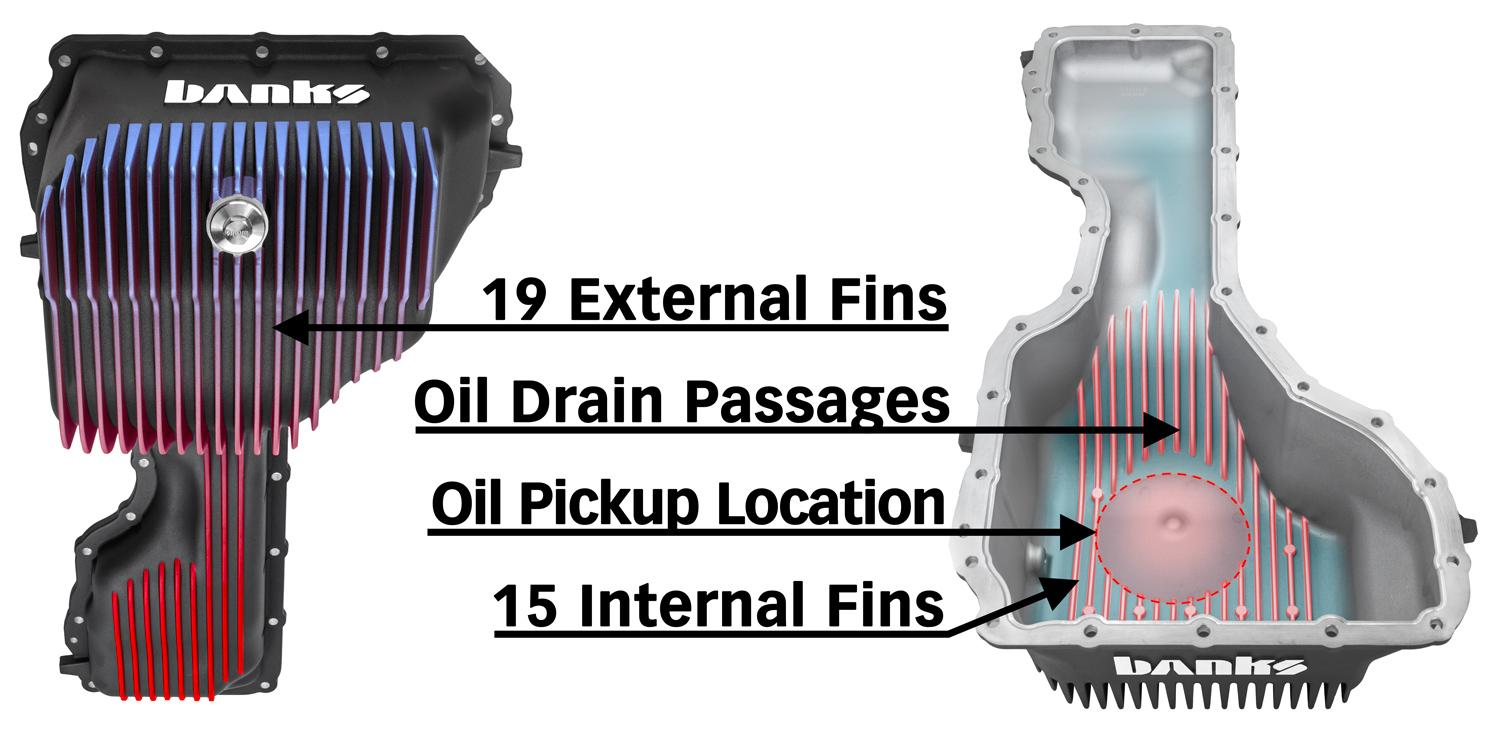

• 19 deep-cut huge external radiator fins provide more surface area to the cool air moving under the truck.

• The die-cast process provides a smoother interior surface which improves oil flow to the pickup tube and drain.

• A smooth, streamlined area around the oil pickup with an engineered anti-cavitation dimple improves oil flow to the pump by reducing restriction at the filter inlet.

• 15 internal fins absorb more heat from the oil than a stock or any other aftermarket pan.

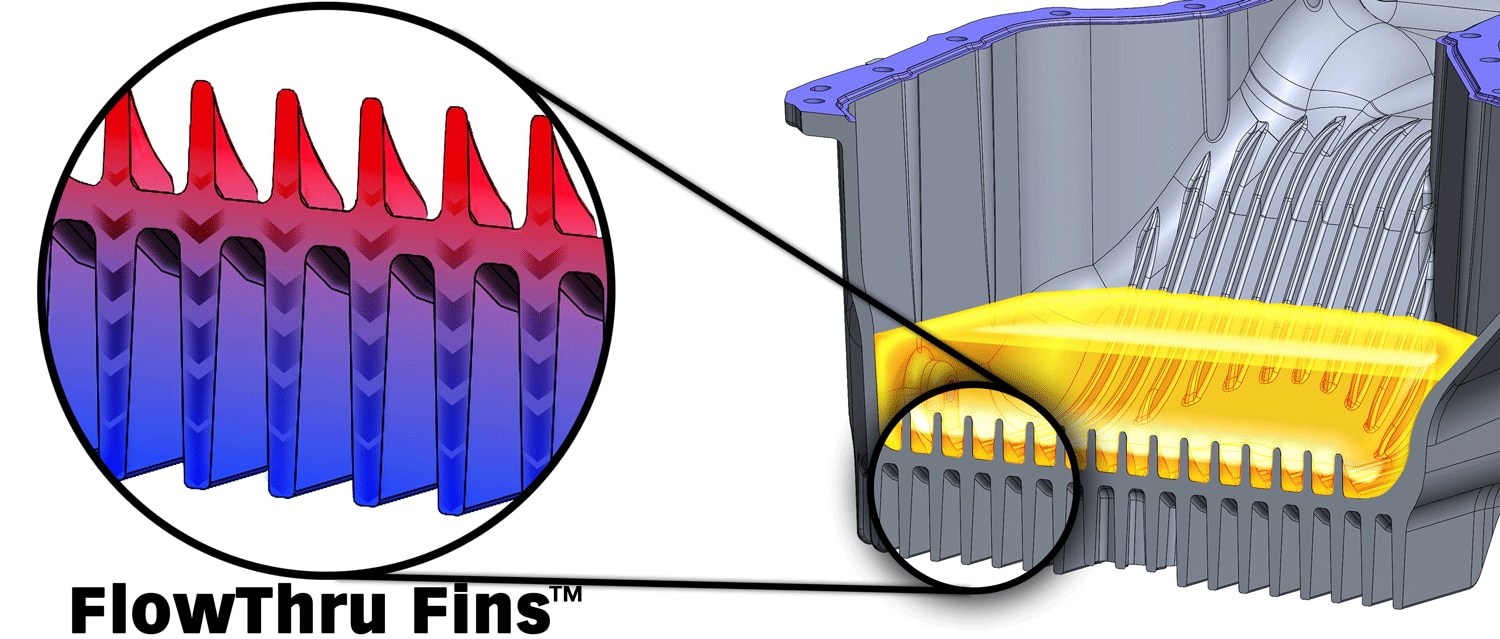

Banks proprietary FlowThru Fins™ maximize thermal energy transfer by lining up the internal and external features with each other.

Engine heat is efficiently drawn from the sump where the hottest oil rests. Cooler oil retains the proper viscosity, which means metal-on-metal surfaces remain properly lubricated.

With more internal heat absorption surface area and more external heat radiation surface area, your motor oil stays within its optimum operating temperature, which prevents oxidation or breakdown even when hauling up a grade.

Oil Flow Improvements

The CoolRunner oil pan features a 1/8" NPT port for an auxiliary temp sensor, is able to hold an additional two quarts of oil compared to stock, and allows for complete oil drain free from the sludge known to stay within the stock pan.

Unlike competitors, which feature small grooves that run against the oil's return flow and disrupt the oil pickup tube's action, the CoolRunner's deep fins properly direct fluid to the oil pickup.

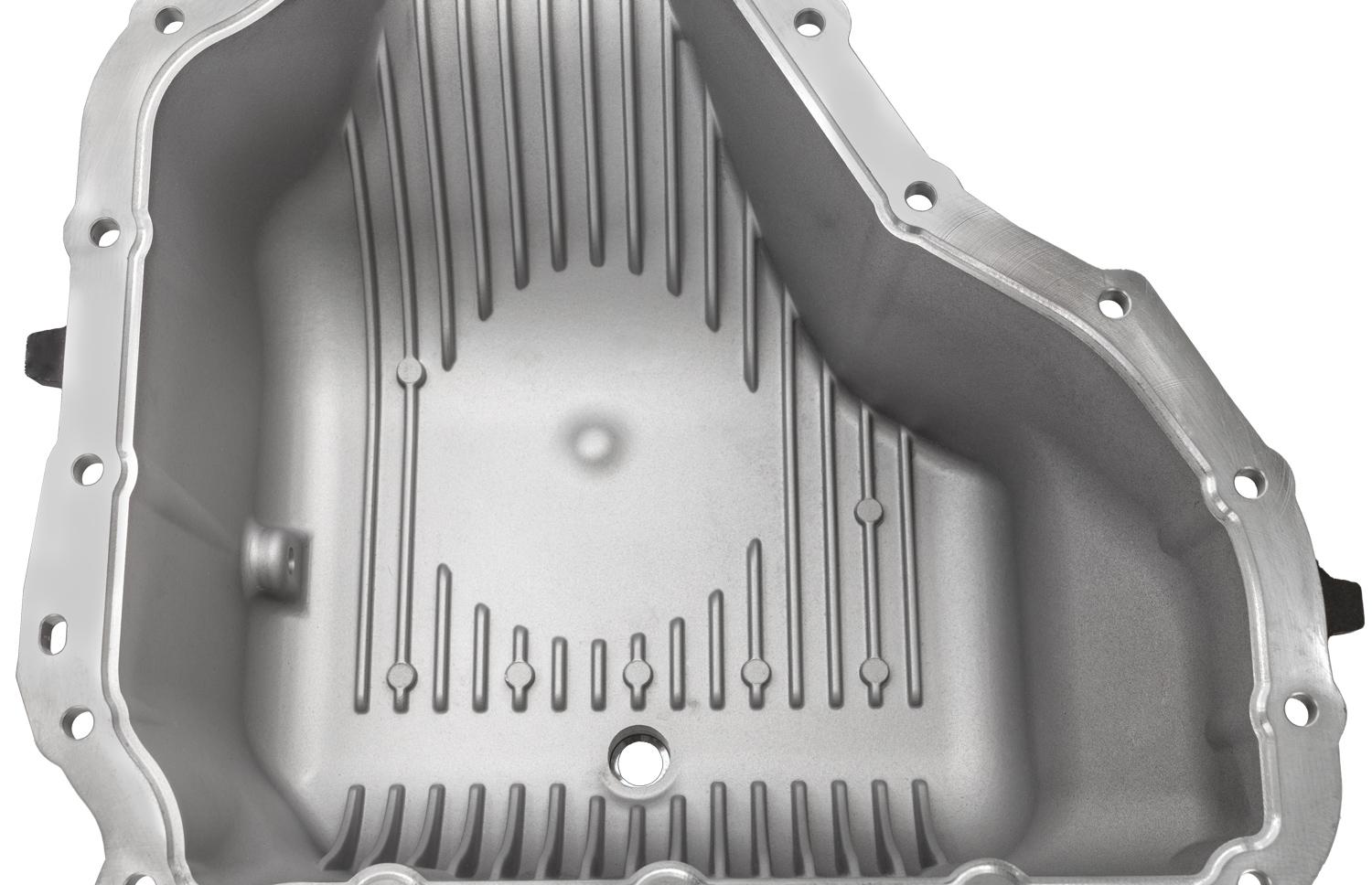

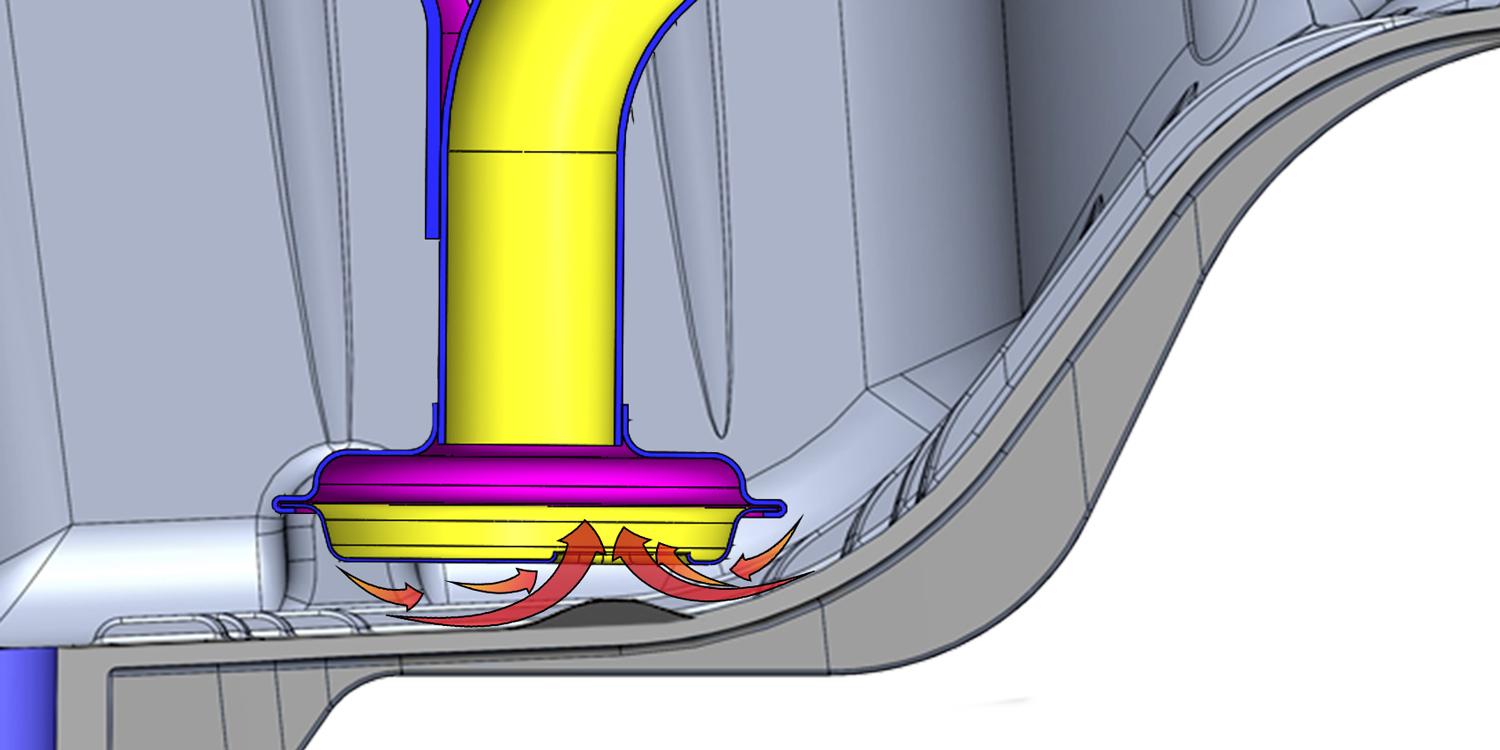

The area under the oil pickup tube features a unique anti-cavitation dimple which smoothly redirects oil flow upwards.

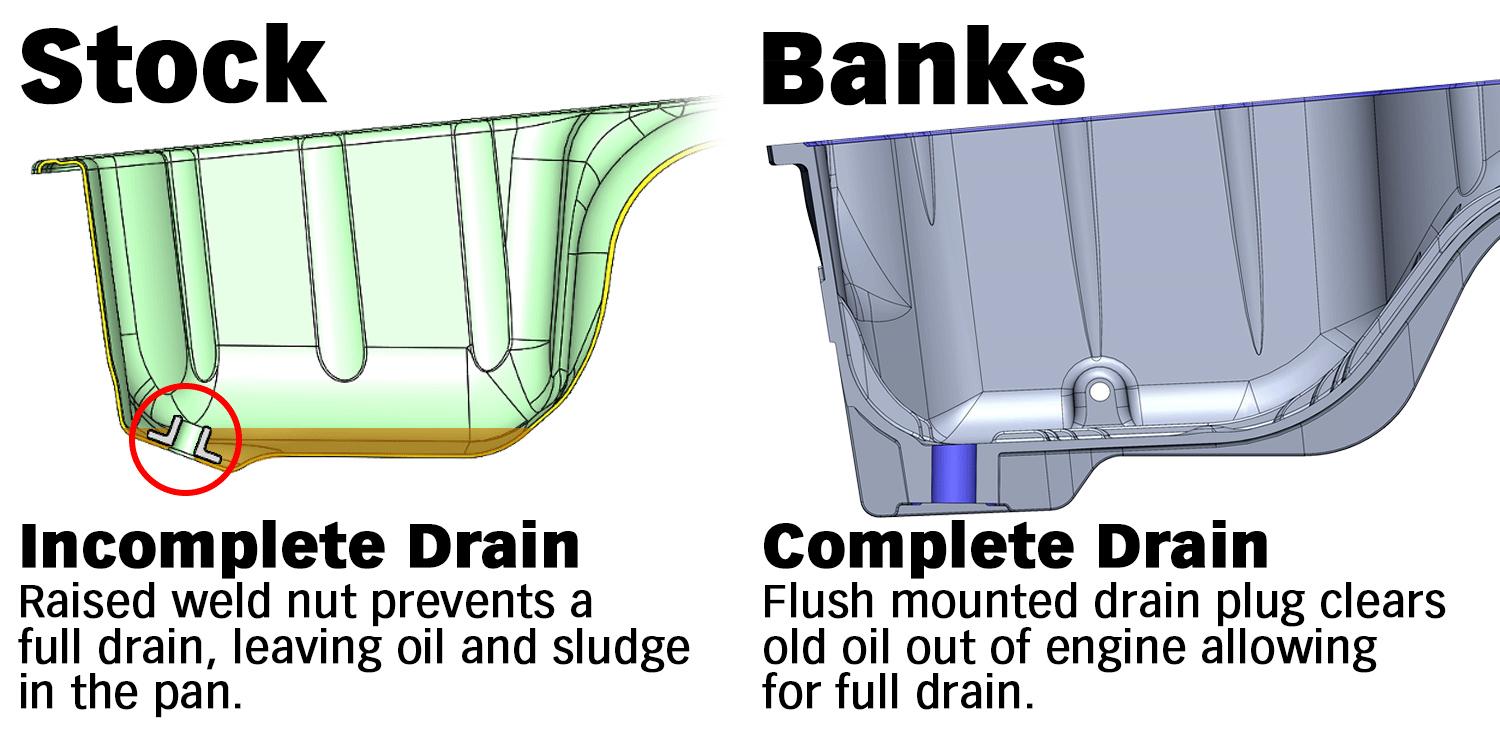

The factory pan uses drain plug that threads into a welded bung that protrudes inwards. This bung blocks oil from completely draining once it hits the top of the threaded bung.

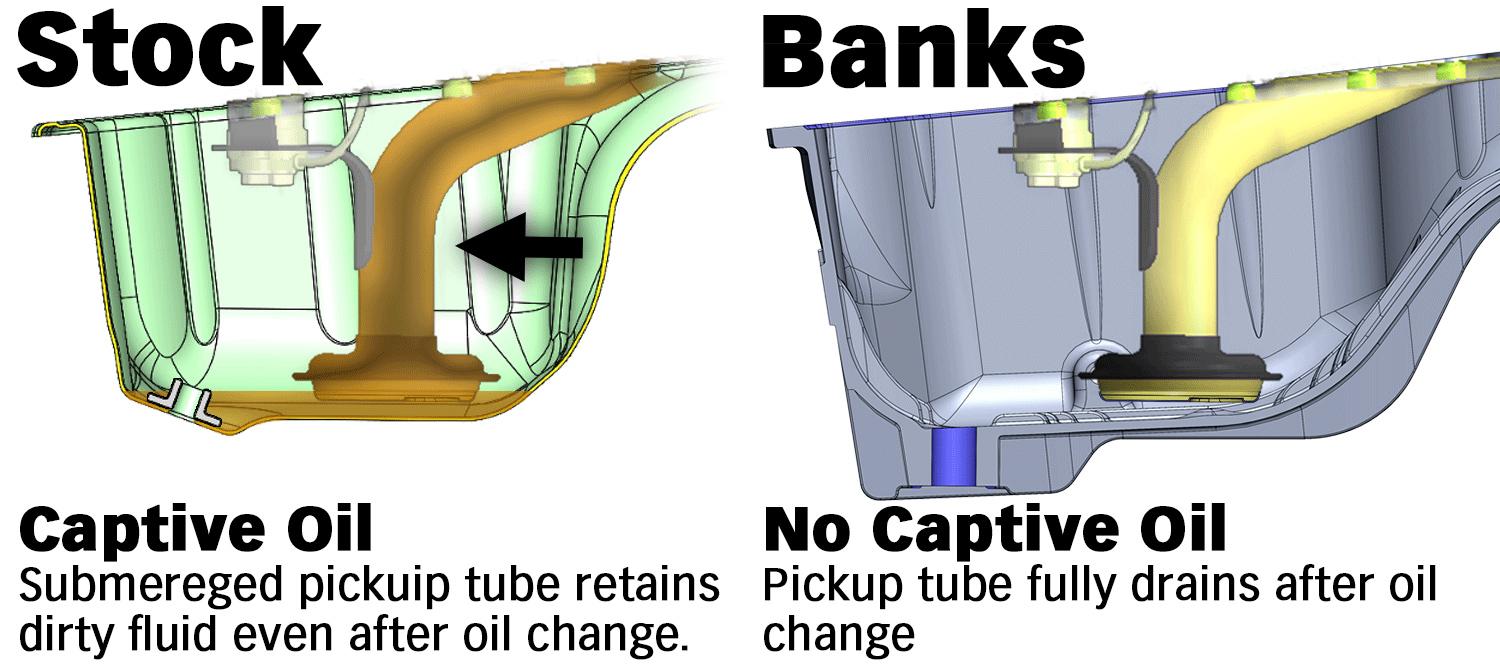

Thanks to a high static oil level, pressure on the pickup tube inlet prevents oil from escaping during an oil change. This leaves almost half a quart of liquid sandpaper in your engine

Sealing Enhancements

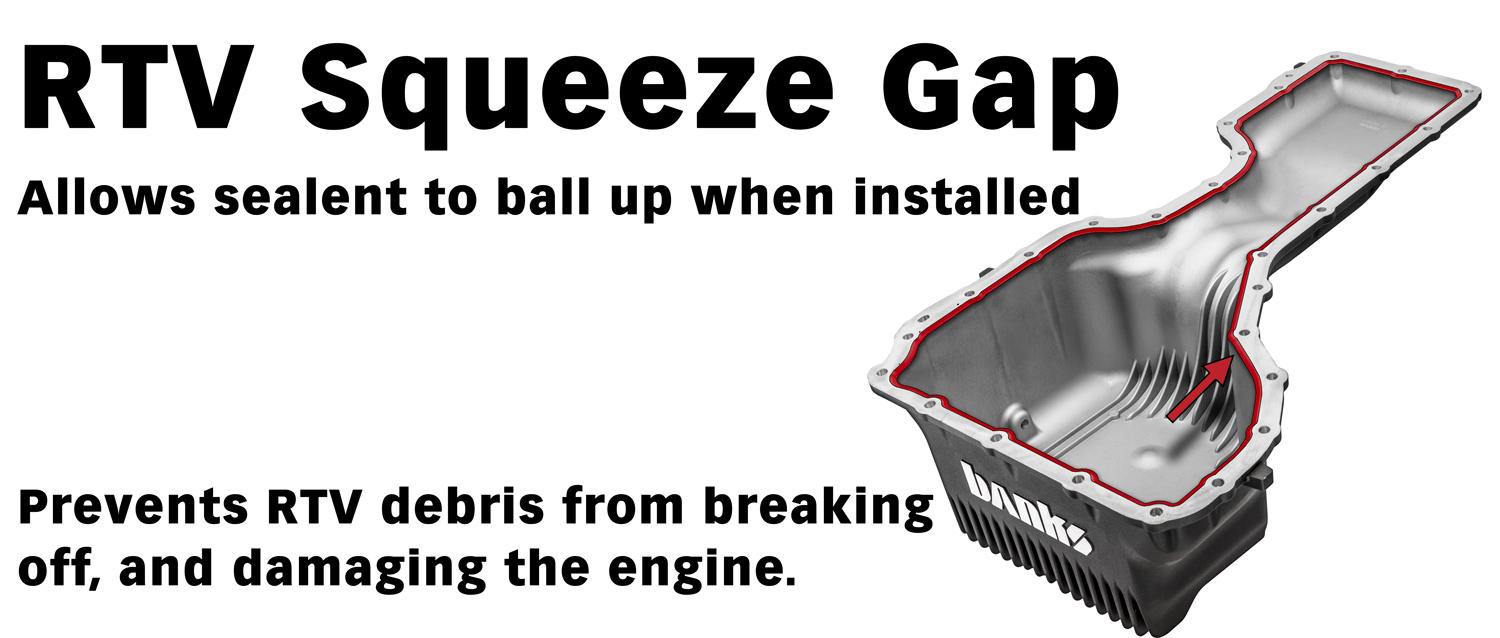

Duramax oil pans use an RTV-style liquid gasket that must fully seal to prevent leaks. Poorly designed pans with an improper sealing surface can result in leaks or damage from strands of RTV falling in, clogging the oil pickup tube, or jamming the pump.

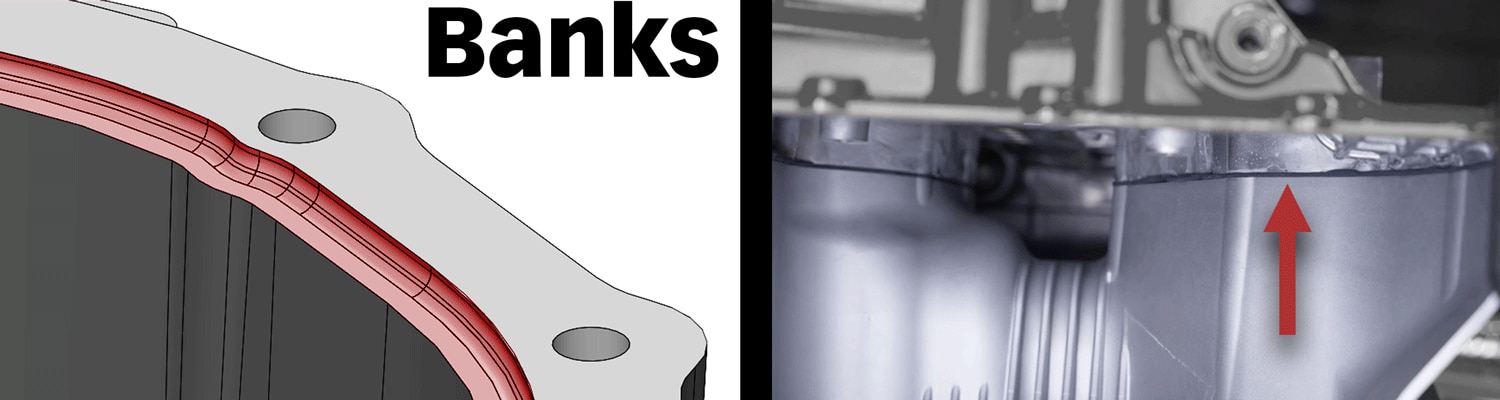

Borrowing from decades of reliable military development, the CoolRunner uses an OE-style full-length squeeze gap that runs the entire inner perimeter of the pan. This precision-machined feature prevents small RTV strands from breaking off, falling into the sump, and damaging your engine.

Fluid Dynamics

• Internal cooling fins run inline with the drain port with streamlined passageways
• Anti-Cavitation dimple directly under oil pickup improves oil flow rate
• Downward facing port eases oil change process
• Low fluid aeration means longer fluid life

Technical Specs

• 1/8 NPT port for aux temp sensor
• External heat radiation fin count: 19
• Internal heat absorption fin count: 15

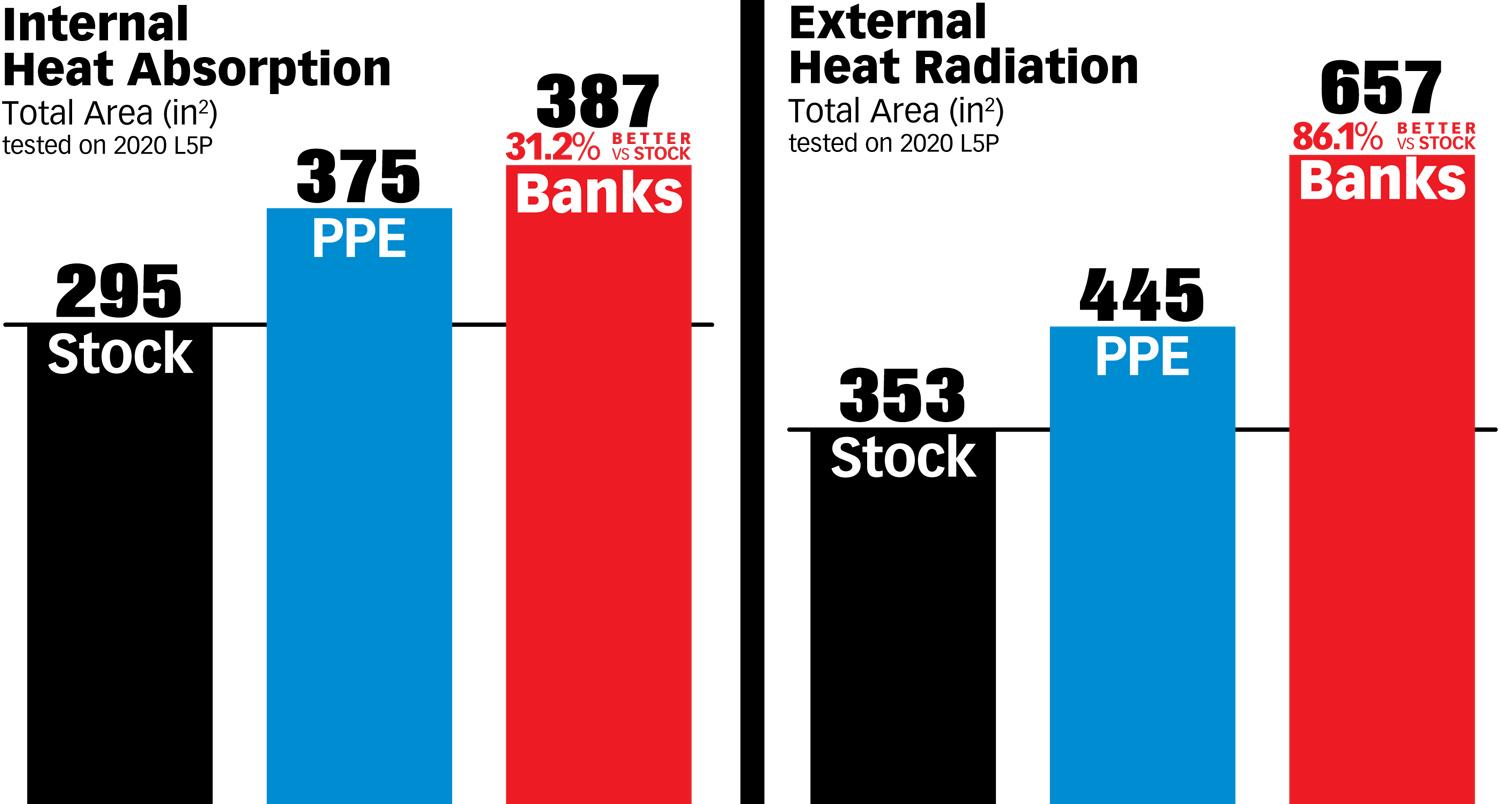

• External heat radiation surface area: 657 in²
• Internal heat absorption surface area: 387 in²
• Fasteners: 26 x stainless steel M6 flange hex bolts
• Material: A380 aluminum die-cast with CNC machined surfaces

Oil service

• High temp resistant Ferrite Magnetic Drain Plug
• Fully drains oil pickup tube for quicker oil changes
• Banks recommends Amsoil 15W-40 Signature Series Max-Duty Synthetic Diesel Oil
• Adds 2.0 Qts additional capacity(Check OEM Owners Manual)

Manuals

2017-2019 L5P CoolRunner Oil Pan Installation & Video

CoolRunner Oil Pan

Black Powder Coat

SKU #35135-B

2017-2019 Chevy/GMC 2500/3500 6.6L Diesel L5P

Heat kills motor oil.
That's why we engineered the Banks CoolRunner™ Oil Pan.

• 2017 Chevrolet Silverado 2500 HD 6.6L DIESEL
• 2017 Chevrolet Silverado 3500 HD 6.6L DIESEL
• 2017 GMC Sierra 2500 HD 6.6L DIESEL
• 2017 GMC Sierra 3500 HD 6.6L DIESEL
• 2018 Chevrolet Silverado 2500 HD 6.6L DIESEL
• 2018 Chevrolet Silverado 3500 HD 6.6L DIESEL
• 2018 GMC Sierra 2500 HD 6.6L DIESEL
• 2018 GMC Sierra 3500 HD 6.6L DIESEL
• 2019 Chevrolet Silverado 2500 HD 6.6L DIESEL
• 2019 Chevrolet Silverado 3500 HD 6.6L DIESEL
• 2019 GMC Sierra 2500 HD 6.6L DIESEL
